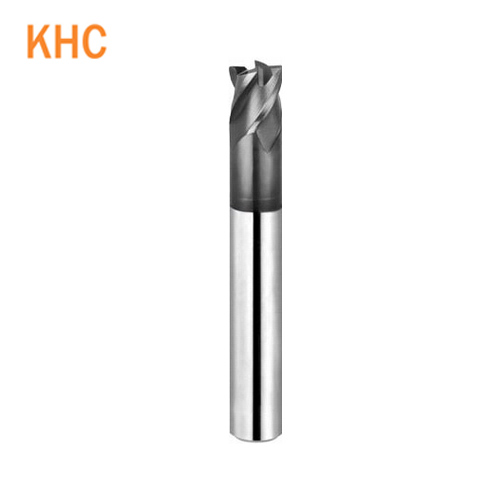

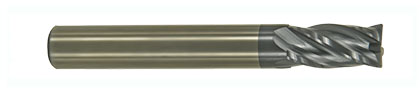

产品名称:高硬度加强型4刃钨钢圆鼻铣刀
- 所属分类：高硬度钨钢铣刀
- 产品型号:KSA430RP
材质：0.4μ
涂层：ALTIN 高铝钛
螺旋角度：30
适合加工硬度：HRC62以下
单位：mm
涂层：ALTIN 高铝钛
螺旋角度：30
适合加工硬度：HRC62以下
单位：mm
订购热线：400-6848-288
应用范围
“KHC”是德国整体硬质合金铣刀品牌，使用世界上最先进的德国、瑞士研磨设备，采用欧洲高品质的钨钢棒材及搭配世界一流的镀层技术，造就了KHC钨钢铣刀高速、高效率、高硬度及高性价比的金属切削刀具。KSA430RP是高硬度4刃圆鼻钨钢铣刀，适合62度以下材料加工。KSA430RP主要应用在一般热处理模具加工行业。
产品规格
产品参数下载
|
序号
|
描述
|
品名
|
Model NO. 产品编号 |
Radius（R) 球头半径/R角 |
Dia. 刃径 |
Flute Length 刃长 |
Shank Dia. 柄径 |
Overal Length 全长 |
|
1
|
加强型4刃钨钢圆鼻铣刀
|
KSA430RP
|
K40040020204
|
0.2
|
2
|
4
|
4
|
50
|
|
2
|
K40040050204
|
0.5
|
2
|
4
|
4
|
50
|
||
|
3
|
K40040020304
|
0.2
|
3
|
6
|
4
|
50
|
||
|
4
|
K40040030304
|
0.3
|
3
|
6
|
4
|
50
|
||
|
5
|
K40040050304
|
0.5
|
3
|
6
|
4
|
50
|
||
|
6
|
K40040100304
|
1
|
3
|
6
|
4
|
50
|
||
|
7
|
K40040020404
|
0.2
|
4
|
8
|
4
|
50
|
||
|
8
|
K40040030404
|
0.3
|
4
|
8
|
4
|
50
|
||
|
9
|
K40040050404
|
0.5
|
4
|
8
|
4
|
50
|
||
|
10
|
K40040100404
|
1
|
4
|
8
|
4
|
50
|
||
|
11
|
K40040030306
|
0.3
|
3
|
6
|
6
|
50
|
||
|
12
|
K40040050306
|
0.5
|
3
|
6
|
6
|
50
|
||
|
13
|
K40040100306
|
1.0
|
3
|
6
|
6
|
50
|
||
|
14
|
K40040030406
|
0.3
|
4
|
8
|
6
|
50
|
||
|
15
|
K40040050406
|
0.5
|
4
|
8
|
6
|
50
|
||
|
16
|
K40040100406
|
1.0
|
4
|
8
|
6
|
50
|
||
|
17
|
K40040050506
|
0.5
|
5
|
10
|
6
|
50
|
||
|
18
|
K40040100506
|
1.0
|
5
|
10
|
6
|
50
|
||
|
19
|
K40040030606
|
0.3
|
6
|
12
|
6
|
50
|
||
|
20
|
K40040050606
|
0.5
|
6
|
12
|
6
|
50
|
||
|
21
|
K40040100606
|
1.0
|
6
|
12
|
6
|
50
|
||
|
22
|
K40040050808
|
0.5
|
8
|
16
|
8
|
60
|
||
|
23
|
K40040100808
|
1.0
|
8
|
16
|
8
|
60
|
||
|
24
|
K40040150808
|
1.5
|
8
|
16
|
8
|
60
|
||
|
25
|
K40040051010
|
0.5
|
10
|
20
|
10
|
75
|
||
|
26
|
K40040101010
|
1.0
|
10
|
20
|
10
|
75
|
||
|
27
|
K40040151010
|
1.5
|
10
|
20
|
10
|
75
|
||
|
28
|
K40040201010
|
2.0
|
10
|
20
|
10
|
75
|
||
|
29
|
K40040051212
|
0.5
|
12
|
24
|
12
|
75
|
||
|
30
|
K40040101212
|
1.0
|
12
|
24
|
12
|
75
|
||
|
31
|
K40040151212
|
1.5
|
12
|
24
|
12
|
75
|
||
|
32
|
K40040201212
|
2.0
|
12
|
24
|
12
|
75
|

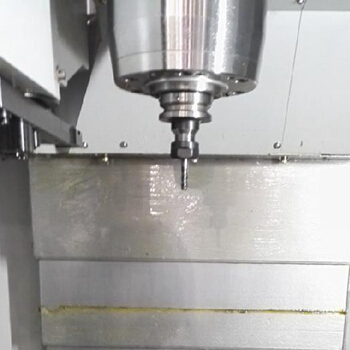

加工效果图

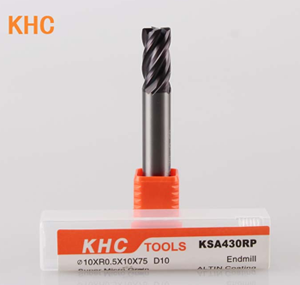

高硬度加强型4刃钨钢圆鼻铣刀 、加工及外包装图：
